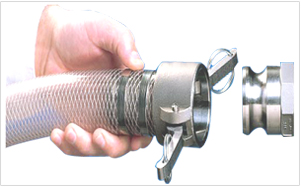

Camlock Coupling
B.S.Hydro is a prominent camlock coupling manufactures with wide variety of material, end connection and sizes. Camlock coupling is designed for leakproof full flow of fluids. It offers positive leak proof connection without use of any tools. It can handle many vairiety of fluids, semi solids, paste, powder for bulk material transfers. Frequequent connection and disconnection of these fluid lines is done in seconds with camlock design. It minimizes material loss and down time. know more..
Working principal

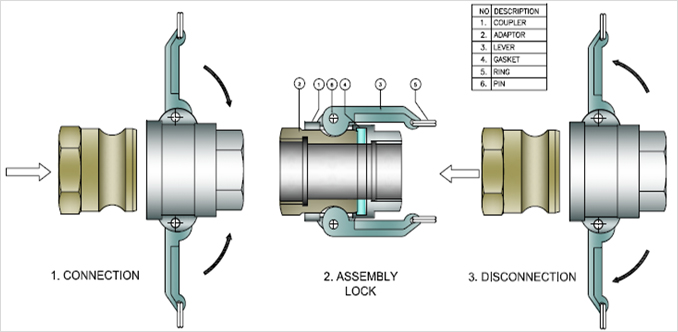

Camlock works on a lever lock principal. The coupler levers are opened and the adaptor is pushed in to the coupler. The adaptor is then securely locked by closing the lever. This action simultaneously compresses the seal in the coupler and provides a leak proof joint. Disconnection is done by opening the levers and pulling the adaptor out of coupler.
- Size : 1/8”,1/4”,3/8”,1/2”,3/4”,1”, 1 ½”, 2”
- End connection : BSP/NPT Female threads
- Pressure rating : 5000 PSI ( 350 BAR)
- Locking device : Ball Lock
- Seal : Nitrile, Viton
- Material : steel, Stainless Steel, Brass
Specifications:
Applications:
Bulk material transfer of: Oil, water, paste, powder, solvents, semi solids, slurry and abrasive materials.
We are Camlock Coupling manufacturers, suppliers and exporters in Mumbai, India. We are an ISO 9001 certified company situated in Mumbai, Maharashtra, India. We have very huge experience more than 2 decades in this domain. Hence our offered cam and groove couplings are highly appreciated for its workmanship, reliability, accuracy and functional performance for various industrial applications in power plant, oil and gas industry, steel plant, petrochemical refinery, pharma and engineering industries.
Being a prominent camlock coupling suppliers from India, We also export best range and specifications of cam and groove coupling all over the world such as Canada, United Kingdom, Australia, UAE, Srilanka, Malaysia, Iran etc.
