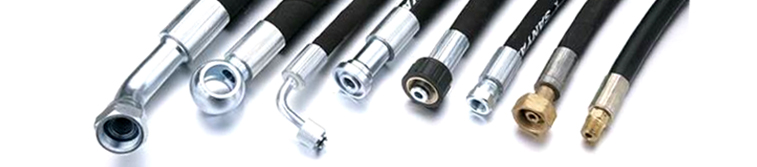

Hose & Hose Assembly
AIR / WATER HOSE (RAW 1)
- Application : Low Pressure Range Use For Compression Delivery Conditions.
- Lining : Modified Natural Rubber Compound
- Reinforcement : Braided With One / Two High Tensile Yarn.
- Cover : Modified Natural Rubber Compound With Ageing And Abrasion
- Standard : Exceed Is 444 & 446 (type -1)
|
Nominal |
Maximum Working |
Minimum Burst |
Mean Outer Cover Diameter mm |
|||
| INCH | MM. | PSI | BAR | PSI | BAR | |
|
1/4 |
6.3 |
150 |
10 |
600 |
4.0 |
13.5 |
|
516 |
8.0 |
150 |
10 |
600 |
4.0 |
15.5 |
|
3/8 |
10.0 |
150 |
10 |
600 |
4.0 |
18.5 |
|
1/2 |
12.5 |
150 |
10 |
600 |
4.0 |
20.5 |
|
5/8 |
16.0 |
150 |
10 |
600 |
4.0 |
24.5 |
|
3/4 |
20.0 |
150 |
10 |
600 |
4.0 |
28.5 |
|
1 |
25.0 |
150 |
10 |
600 |
4.0 |
34.5 |
|
1-1/4 |
31.5 |
110 |
10 |
410 |
2.8 |
42.0 |
|
1-1/2 |
38.0 |
110 |
7 |
410 |
2.8 |
50.5 |
|
2 |
50.0 |
110 |
7 |
410 |
2.8 |
66.5 |
HEAVY DUTY PNEUMATIC TOOL HOSE
- Application : Suitable Light Duty Compressive Delivery Purpose in Ship Yard Wagon in tough Operating.
- Lining : Modified Natural Rubber Compopund.
- Reinforcement : One / Two High Tensile Synthetic Yarn Braids
- Cover : Modified Natural Rubber Resistant To Abrasion & Ageing.
- Standard : Exceed is 446 (type - II)
|
Nominal |
Maximum Working |
Minimum Burst |
Mean Outer Cover Diameter mm |
|||
| INCH | MM. | PSI | BAR | PSI | BAR | |
| 1/4 | 6.3 | 300 | 20 | 900 | 6.0 | 13.5 |
|
516 |
8.0 |
300 |
20 |
900 |
6.0 |
15.0 |
|
3/8 |
10.0 |
300 |
20 |
900 |
6.0 |
18.0 |
|
1/2 |
12.5 |
300 |
20 |
900 |
6.0 |
22.5 |
|
5/8 |
16.0 |
300 |
20 |
900 |
6.0 |
26.0 |
|
3/4 |
20.0 |
300 |
20 |
900 |
6.0 |
30.0 |
|
1 |
25.0 |
300 |
20 |
900 |
6.0 |
36.5 |
|
1-1/4 |
31.5 |
225 |
15 |
600 |
4.0 |
43.5 |
|
1-1/2 |
38.0 |
225 |
15 |
600 |
4.0 |
50.5 |
|
2 |
50.0 |
225 |
15 |
600 |
4.0 |
66.5 |
ROCK DRILL HOSE (RD1)
- Application : Suitable For Heavy Duty Purpose For Pneunmatic Application In Industry, Construction, Mines And Quarries In Most Severe Service Condition.
- Lining : Heat And Oil Mist Resistant Blend Of Synthetic And Natural Rubber
- Reinforcement : Braided With High Tensile Synthetic Yarn.
- Cover : Modified Natural Rubber Compound With Excellent Abrasion And Ageing Resistance.
- Standard : Exceed is 446 (type - II)
|
Nominal |
Maximum Working |
Minimum Burst |
Mean Outer Cover Diameter mm |
|||
| INCH | MM. | PSI | BAR | PSI | BAR | |
| 3/8 | 10.0 | 365 | 25 | 1450 | 100 | 18.5 |
|
1/2 |
12.5 |
365 |
25 |
1450 |
100 |
22.5 |
|
5/8 |
16.0 |
365 |
25 |
1450 |
100 |
26.0 |
|
3/4 |
20.0 |
365 |
25 |
1450 |
100 |
30.0 |
|
1 |
25.0 |
365 |
25 |
1180 |
100 |
36.0 |
|
1-1/4 |
31.5 |
300 |
20 |
1180 |
80 |
43.5 |
|
1-1/2 |
38.0 |
260 |
18 |
1060 |
72 |
50.5 |
|
2 |
50.0 |
260 |
18 |
1060 |
72 |
66.5 |
ROCK DRILL HOSE (RD2)
- Application : pecially Designed Rock Drill Hose Is Intended For The Extra Heavy Duty, High Pressure Pneumatic Use In Industry, Construction, Mines And Quarries In Most Severe Service Condtions.
- Lining : Heat And Oil Mist Resisttant Rubber
- Reinforcement : One High Tensile Steel Wire
- Cover : Tough Abrasion & Oil Resistant Blue Rubber Compound
- Standard : Exceeds Is: 446 Type - lii Specification
|
Nominal |
Maximum Working |
Minimum Burst |
Mean Outer Cover Diameter mm |
|||
| INCH | MM. | PSI | BAR | PSI | BAR | |
| 3/8 | 10.0 | 510 | 35 | 2040 | 140 | 18.5 |
|
1/2 |
12.5 |
510 |
35 |
2040 |
140 |
21.0 |
|
5/8 |
16.0 |
510 |
35 |
2040 |
140 |
24.0 |
|
3/4 |
20.0 |
510 |
35 |
2040 |
140 |
29.4 |
|
1 |
25.0 |
510 |
35 |
2040 |
140 |
36.6 |
|
1-1/4 |
31.5 |
510 |
35 |
2040 |
140 |
43.0 |
|
1-1/2 |
38.0 |
510 |
35 |
2040 |
140 |
50.4 |
|
2 |
50.0 |
510 |
35 |
2040 |
140 |
63.5 |
CHEMICAL HOSE
- Application : Designed To Handle A Wide Range of Chemicals, Acids, Alkalies & Alcoholic Materials.
- Lining : Uniform Smooth Seamless Rubber Compound Depending On The Liquid For Which The Hose is To be Employed.
- Reinforcement : Suitably Braided With Textile Yarn
- Cover : Abrasion, Weather, Ozone & Heat Resistant,Rubber Compound.
- Standard : Exceeds Is 7654 Specification Type - lI
|
Nominal |
Maximum Working |
Minimum Burst |
Mean Outer Cover Diameter mm |
|||
| INCH | MM. | PSI | BAR | PSI | BAR | |
| 3/8 | 10.0 | 200 | 15 | 880 | 60 | 18.0 |
|
1/2 |
12.5 |
200 |
15 |
880 |
60 |
22.5 |
|
5/8 |
16.0 |
200 |
15 |
880 |
60 |
27.0 |
|
3/4 |
20.0 |
200 |
15 |
880 |
60 |
31.0 |
|
1 |
25.0 |
200 |
15 |
880 |
60 |
38.0 |
|
1 - 1/4 |
31.5 |
200 |
15 |
880 |
60 |
45.5 |
|
1 -1/2 |
38.0 |
200 |
15 |
880 |
60 |
52.5 |
|
2 |
50.0 |
200 |
15 |
880 |
60 |
68.0 |
CAR WASH HOSE (RW 1/RW 2)
- Application : For Rugged Use In Service Station And Water Jetting.
- Lining : Black Synthetic Rubber
- Reinforcement : Rw 1 One High Tensile Wire Braid Rw 2 Two High Tensile Wire Braid
- Cover : Black Synthetic Rubber Resistant To Ozone, Oil, Grease, Abrasion And Weather
- Special Feature : High Burst Pressure For Safety Factor
|
Dash No |
DN |
Nominal Bore |
Mean Cover Dia |
Maximum Working Pressure |
Manimum Burst Pressure |
||||||||
| RW1 | RW2 | RW1 | RW2 | RW1 | RW2 | ||||||||
| INCH | MM. | MM | MM | PSI | BAR | PSI | BAR | PSI | BAR | PSI | BAR | ||
|
-6 |
10 |
3/8 |
10.0 |
21.0 |
22.5 |
1080 |
75 |
2175 |
150 |
7975 |
550 |
13775 |
950 |
|
-8 |
12 |
1/2 |
12.5 |
24.0 |
25.5 |
1080 |
75 |
2175 |
150 |
7975 |
550 |
13775 |
950 |
WELDING HOSE (ID 447/1987 CERTIFIED )
- Application : Welding Hose Find Application In Every Type Of Workshop. Such As Steel Mill, Shipyard, Power Station, Fabrication Etc.
- Construction : Uniform Seamless Inner Tube With Suitable Reinforcement of Synthetic Yarn And Outer Cover Is Cloth Mark Finish From Tough Abrasion Resistant Blue / Red Coloured Rubber Compound.
| Nominal Bore | Working Pressure | Manimum Burst Pressure | |||
| INCH | MM | Kgf/cm 2 | PSI | Kgf/cm 2 | PSI |
| 5/16 | 8 | 12.5 | 180 | 50 | 725 |
| 3/8 | 10 | 12.5 | 180 | 50 | 725 |
SAND / SHOT BLAST HOSE (exceeds i.s. 5894 type - II)
- Application : High Pressure for Cleaning/blasting, Casting Metal, Stone, Concrete Surface With Wet/dry Sand or Other Abrasive Material.
- Lining : Extra Thick Seamless Rubber Lining Free From Mineral Filler and Highly Abrasion Resistant
- Reinforcement : Suitably Braided With Synthetic Yarn And Two Copper Wire Laid Spirally In Oposite Direction To Dissipate Static Charge.
- Cover : Highly Abrasion Resistant Rubber Compound With Protective Anti - Ozonant For Excellent Weather Resistance
|
Nominal Bore |
Minimum Outher Dia |
Maximum Working Pressure |
Manimum Burst Pressure |
|||
| INCH | MM. | (MM) | PSI | Kgf/cm 2 | PSI | Kgf/cm 2 |
|
3/4 |
20.0 |
39.0 |
175 |
12 |
870 |
60 |
|
1 |
25.4 |
45.5 |
175 |
12 |
870 |
60 |
|
1-1/4 |
31.8 |
53.0 |
175 |
12 |
870 |
60 |
|
1-1/2 |
38.0 |
59.0 |
175 |
12 |
870 |
60 |
|
1-3/4 |
45.0 |
66.0 |
175 |
12 |
870 |
60 |
|
2 |
50.0 |
71.0 |
175 |
12 |
870 |
60 |
STEAM hose (RS 1 & RS2) EXCEEDS IS 10655 :1999(TYPE- 2 & 3)
- Application : Steam at high temperature.
- Lining : Steam & Heat Resistant Rubber Compound
- Reinforcement : SRs1- One High Tensiles Steel Wire Rs2- Two High Tensiles Steel Wire
- Cover : Rubber Compound Resistant to Heat, Abrasion & Weather
- Temp : Upto 200° C
- Special Feature : High Safety Ratio With High Bursting
- Option : R - Standard Cover T - Flame Retardant Cover
|
Nominal |
Maximum Working Pressure |
Manimum Pressure |
Manimum Pressure |
||||||||
| RS 1 | RS 2 | RS 1 | RS 2 | RS 1 | RS 2 | ||||||
| INCH | MM | MM | BAR | P.S.I. | BAR | P.S.I. | BAR | P.S.I. | BAR | P.S.I. | BAR |
| 3/8 | 9.5 | 20.0 | 22.0 | 150 | 10 | 232 | 16 | 1500 | 100 | 2320 | 160 |
|
1/2 |
12.7 |
24.7 |
26.7 |
150 |
10 |
232 |
16 |
1500 |
100 |
2320 |
160 |
|
5/8 |
15.9 |
27.9 |
29.9 |
150 |
10 |
232 |
16 |
1500 |
100 |
2320 |
160 |
|
3/4 |
19.0 |
31.4 |
33.4 |
150 |
10 |
232 |
16 |
1500 |
100 |
2320 |
160 |
|
1 |
25.4 |
38.0 |
40.0 |
150 |
10 |
232 |
16 |
1500 |
100 |
2320 |
160 |
|
1-1/4 |
31.8 |
47.2 |
50.0 |
150 |
10 |
232 |
16 |
1500 |
100 |
2320 |
160 |
|
1-1/2 |
38.1 |
53.5 |
56.7 |
150 |
10 |
232 |
16 |
1500 |
100 |
2320 |
160 |
|
2 |
50.8 |
66.8 |
70.0 |
150 |
10 |
232 |
16 |
1500 |
100 |
2320 |
160 |
STEAM HOSE (RS 3)
- Application : Steam at high Temperature
- Lining : Steam & Heat Resistant Rubber Compound
- Reinforcement : Suitably Braided Textile Yarn
- Cover : Rubber Compound Resistant to Heat, Abrasion Ozone and Weather
- Temp. Range: Upto 160° C
- Special Feature : High Safety Ratio with High Bursting
- Standard : Exceed is 10655 :1999 Type-1
|
Nominal |
Mean Outer Cover Diameter |
Maximum Working Pressure |
Manimum Burst Pressure |
|||
| INCH | MM. | MM | PSI | BAR | PSI | BAR |
| 3/8 | 9.5 | 18.0 | 90 | 6.0 | 915 | 60 |
|
1/2 |
12.7 |
23.0 |
90 |
6.0 |
915 |
60 |
|
5/8 |
15.9 |
27.0 |
90 |
6.0 |
915 |
60 |
|
3/4 |
19.0 |
31.0 |
90 |
6.0 |
915 |
60 |
|
1 |
25.4 |
37.5 |
90 |
6.0 |
915 |
60 |
|
1-1/4 |
31.8 |
44.0 |
90 |
6.0 |
915 |
60 |
|
1-1/2 |
38.1 |
52.0 |
90 |
6.0 |
915 |
60 |
|
2 |
50.8 |
66.5 |
90 |
6.0 |
915 |
60 |
CARBON FREE HOSE
- Application : For the use in induction furnace as cable coolant and non-conduction application
- Lining : Uniform seamless white inner tube
- Reinforcement : Suitably braided with textile yarn
- Cover : Abrasion, Weather & Heat Resistant green colour compounded rubber
|
Nominal |
Maximum Working Pressure |
Manimum Burst Pressure |
Mean Outer Cover Diameter |
|||
| INCH | MM. | PSI | BAR | PSI | BAR | MM |
| 3/8 | 10.0 | 285 | 20 | 1140 | 80 | 18.5 |
|
1/2 |
12.5 | 285 | 20 | 1140 | 80 | 22.5 |
|
5/8 |
16.0 | 285 | 20 | 1140 | 80 | 26.0 |
|
3/4 |
20.0 | 285 | 20 | 1140 | 80 | 30.0 |
|
1 |
25.0 | 285 | 20 | 1140 | 80 | 36.5 |
|
1-1/4 |
31.5 | 285 | 20 | 1140 | 80 | 43.5 |
|
1-1/2 |
38.0 | 285 | 17.2 | 1000 | 80 | 50.5 |
|
2 |
50.0 | 285 | 17.2 | 1000 | 80 | 66.5 |
SAE 100 R1AT / EN 853 1SN
- Application : Hydraulic System With Petroleum Or Water Glycol Base Fluid & For Fuel And Lubricating Oils.
- Lining : Black Oil Resistant Synthetic Rubber.
- Reinforcement : One High Tensile Steel Wire Braid
- Cover : Synthetic Rubber-abrasion, Ozone And Weather Resistant
- Temp. Range: -40°c. To + 120°c. (intermittent Use Upto125°c.)
- Option : R-standard Cover , T-flame Retardant Cover ,H-heat Resistant
|
Dash No |
DN. |
Nominal Bore |
Mean Diameter Over Wire |
Mean Outer Cover Diameter |
Maximum Working Pressure |
Minimum Bourst Pressure |
Minimum Bend Radius |
||||
| INCH | MM | MM | PSI | BAR | PSI | BAR | INCH | MM | |||
|
-3 |
5 |
3/16 |
4.8 |
10.6 |
12.7 |
3625 |
250 |
14500 |
1000 |
3.7 |
95 |
|
-4 |
6 |
1/4 |
6.4 |
11.2 |
13.5 |
3265 |
225 |
13060 |
900 |
4.0 |
102 |
|
-5 |
8 |
5/16 |
7.9 |
12.7 |
15.0 |
3120 |
215 |
12480 |
860 |
4.5 |
114 |
|
-6 |
10 |
3/8 |
9.5 |
15.1 |
17.4 |
2610 |
180 |
10440 |
720 |
5.0 |
127 |
|
-8 |
12 |
1/2 |
12.7 |
18.2 |
20.6 |
2320 |
160 |
9280 |
640 |
7.0 |
178 |
|
-10 |
16 |
5/8 |
15.9 |
21.2 |
24.0 |
1890 |
130 |
7560 |
520 |
8.0 |
203 |
|
-12 |
20 |
3/4 |
19.0 |
25.4 |
28.4 |
1525 |
105 |
6100 |
420 |
9.5 |
241 |
|
-16 |
25 |
1 |
25.4 |
33.3 |
36.6 |
1275 |
88 |
5100 |
352 |
12.0 |
305 |
|
-20 |
32 |
1-1/4 |
31.8 |
40.0 |
43.0 |
915 |
63 |
3660 |
252 |
16.5 |
419 |
|
-24 |
38 |
1-1/2 |
38.1 50.8 |
46.4 |
50.4 |
725 |
50 |
2900 |
200 |
20.0 25.0 |
508 |
